2003-2007 Dodge 5.9L 24V Cummins

These modified he351cw feature a 63mm 6x6 billet compressor wheel with a high flow custom 67mm turbine wheel. All turbos are built from new turbo's and receive brand new cartridges with all new bearings and seals to ensure longevity and durability, the only thing that is reused from the core is the modified exhaust and compressor housings. New wastegates preset to open at 45lbs. These turbos are 2.5 legal and workstock legal (please check rule's sometimes they vary). They have done over 650hp many times before and are amazing upgrades for the everyday driver or someone that tow's heavy. These turbos are very loud compared to stock. So, if you're looking to make more power, better overall efficiency and noise this turbo is for you. Please call before ordering these are built to order. 700hp capable with 1 year warranty.

2004.5-2007 Dodge Ram 5.9L Diesel
Holset HE351CW Turbine Housing + Shaft+ Rebuild kit Upgrade 67/76mm

Application:

2004.5-2007 Dodge Ram with 5.9 ISB Diesel Engine.

Shaft and Wheel Measurements:

Inducer: 76 mm
Exducer: 67 mm
Journal Diameter: 11.00mm
Tip Height: 12.2500mm
Shaft diameter: 7.00mm
Blades:10

Features:
1. New HE351CW Turbine Housing Machined For 67/76mm 10 blade Turbine Wheel, HIGH PERFROMANCE.
Please keep in mind the 10 blade will run hotter than the 12 blade 76/67 turbine option. If you are wanting to upgrade and use your truck to tow small things you need the 12 blade if you dont tow at all go with the 10 blade.

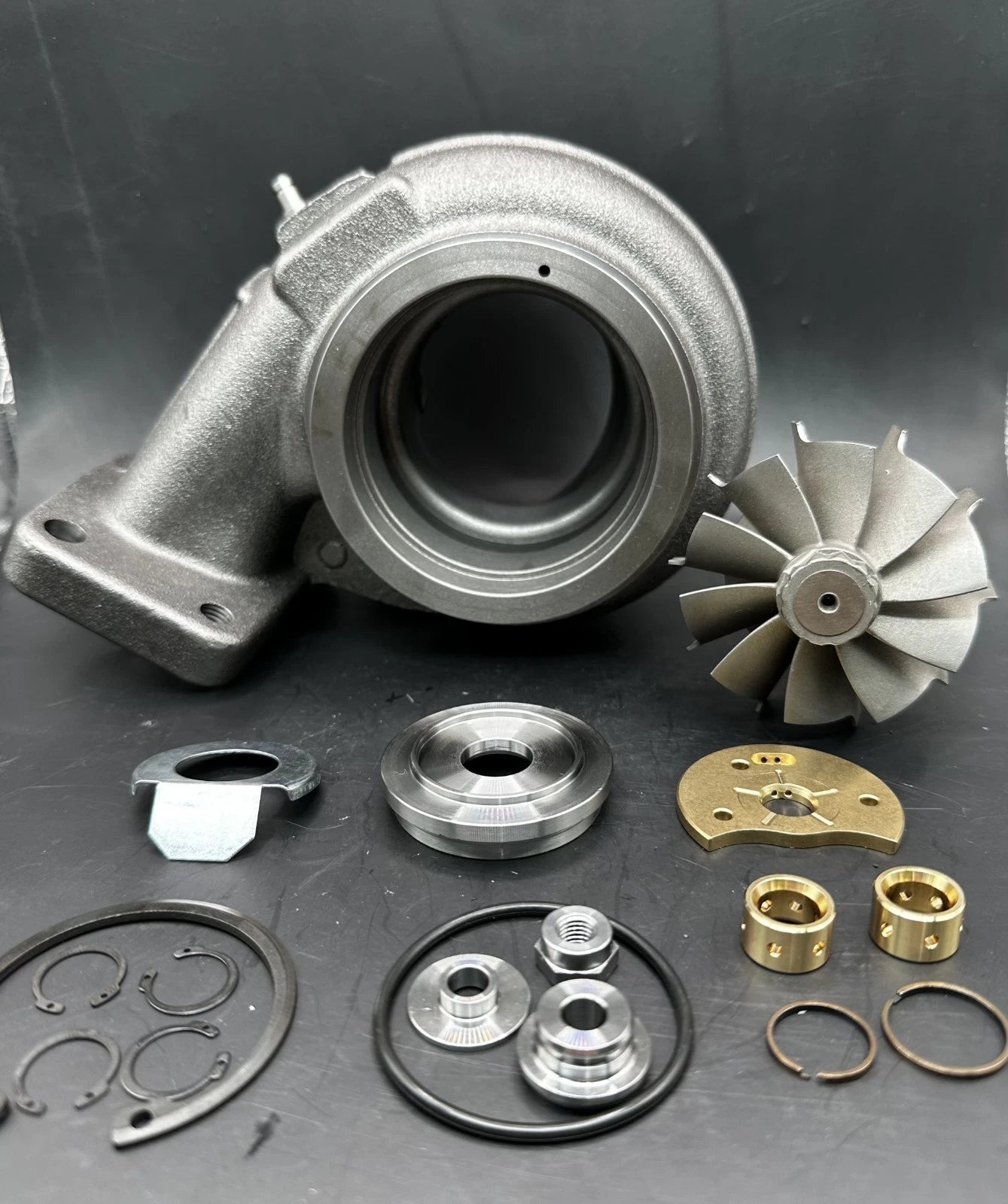

You will get :

Machined HE351CW turbine housing -1

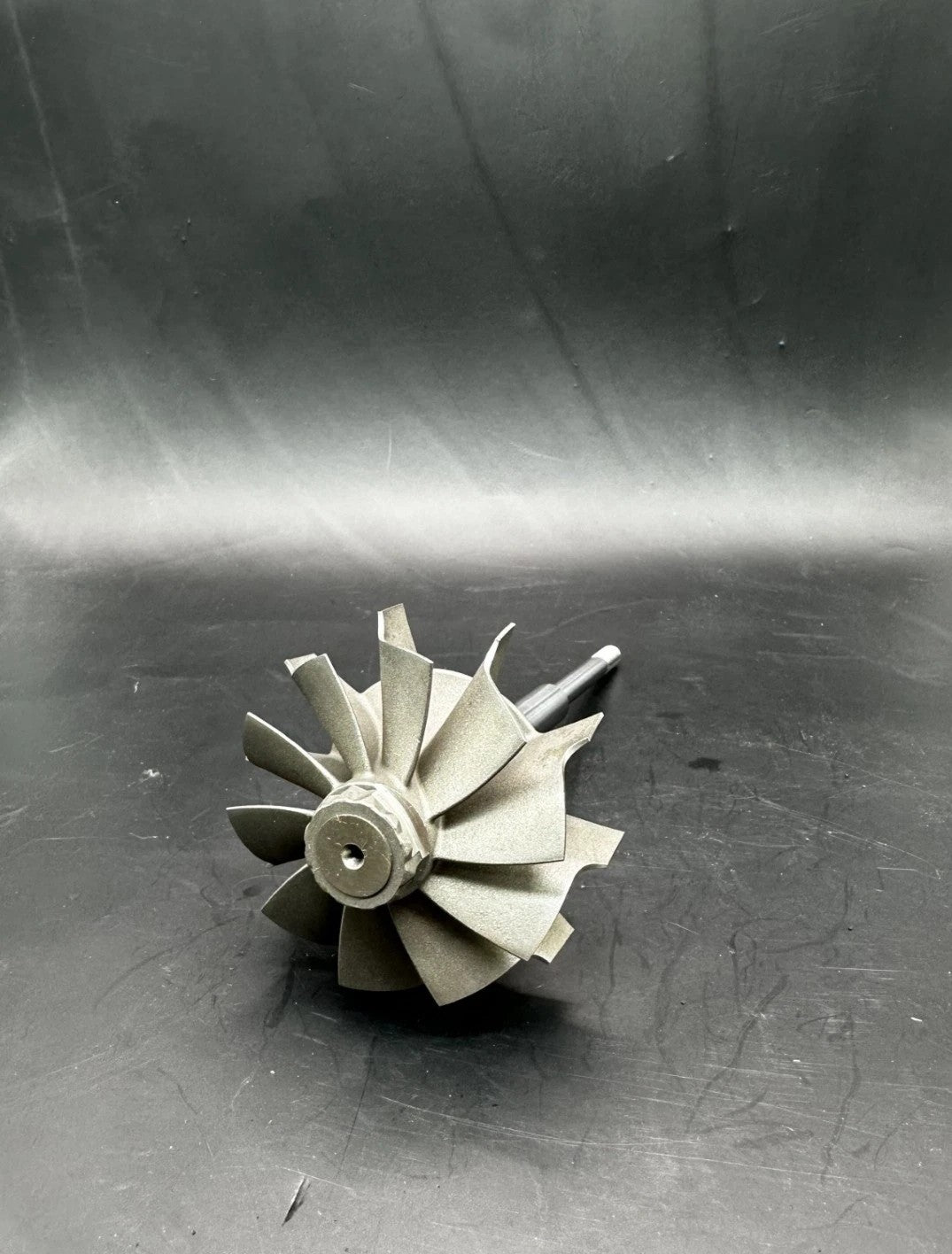

67/76mm turbine wheel -1
Large C-Clip---1
Oil Baffle---1
Oil Seal Plate---1
Journal Bearing---2
360 degree thrust bearing---1

Thrust Collar---------1
Thrust Spacer-----------1
Compressor Wheel Locknut--1
Turbine Side Seal Ring-------1
Compressor Side Seal Ring------1
Journal Bearing C-Clip---------4
Seal O-Ring-------------1
Cast compressor wheel ------------1

2004.5-2007 Dodge Ram 5.9L Diesel

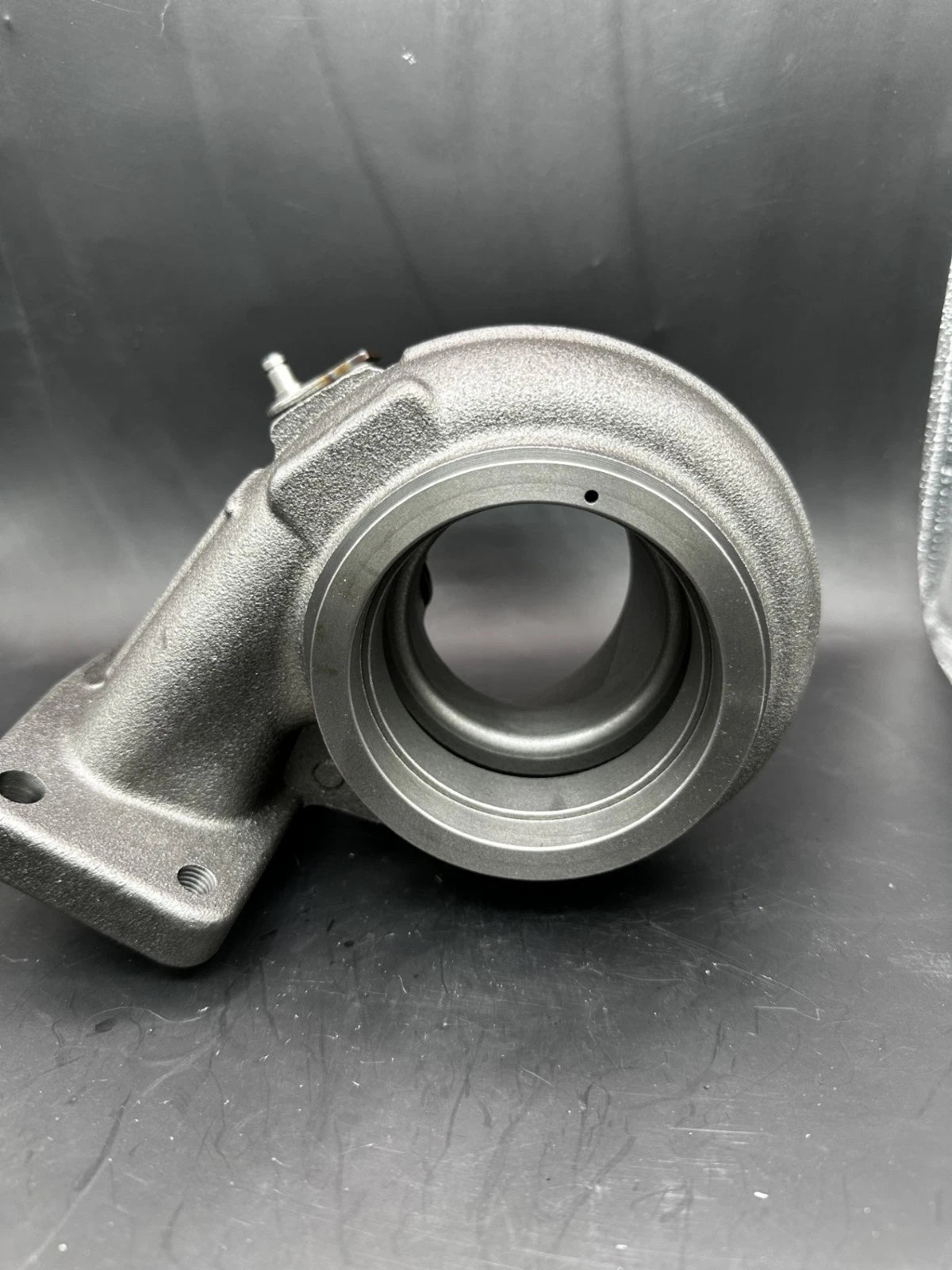

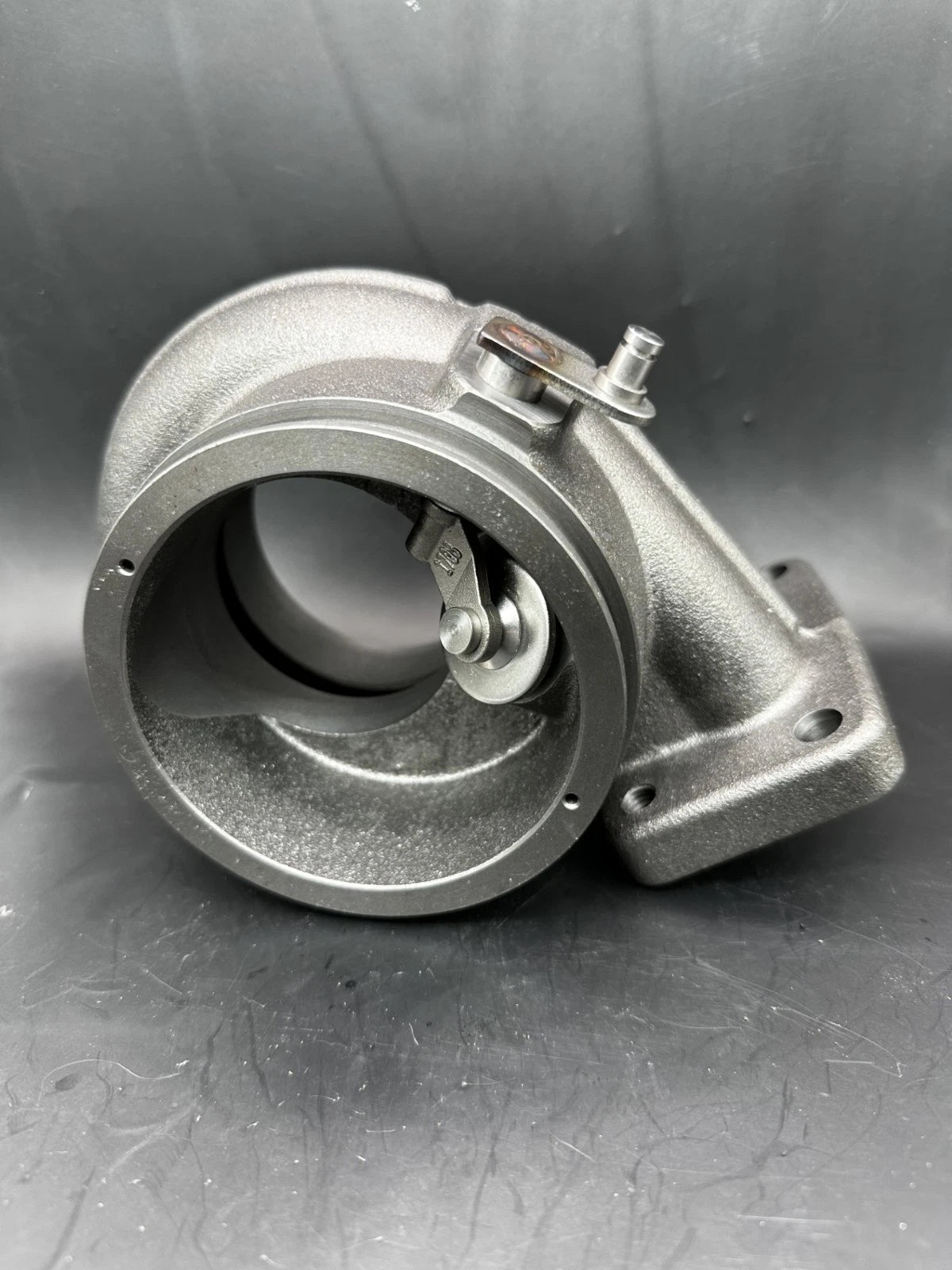

Holset HE351CW Turbine Housing + Shaft+ This listing is only for the turbine housing.

Description:
Upgraded turbine housing for 5.9L HE351CW and HE341CW turbo with 67/76mm turbine wheel

Application:
Fits 2004.5-2007 Dodge Ram with 5.9 ISB diesel engine.

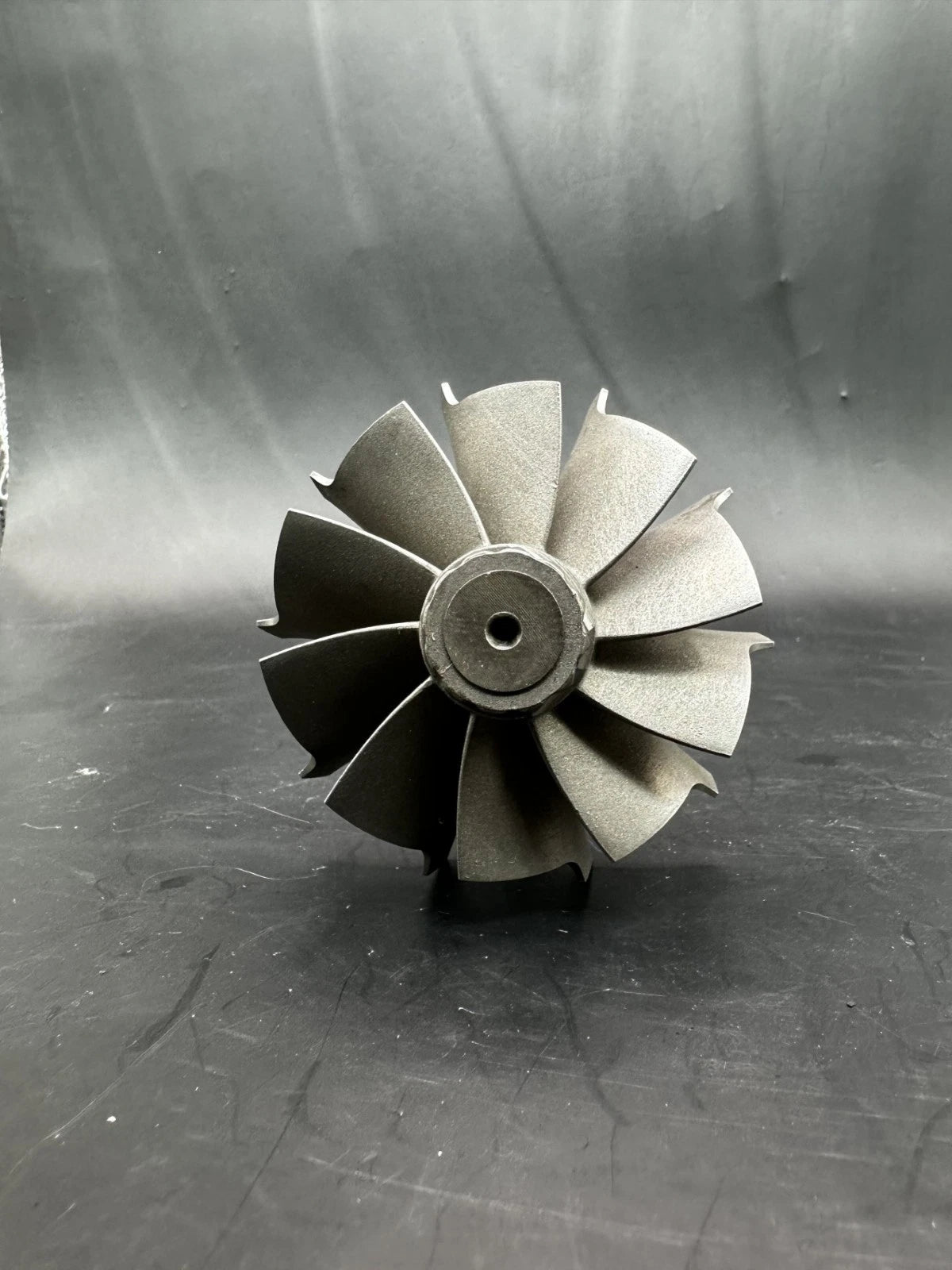

Turbine wheel Measurements that fit this housing:
Inducer: 76 mm
Exducer: 67 mm

1. New HE351CW turbine housing machined for 67/76mm HX40 turbine, upgraded for high performance.
2. Not compatible with factory stock HE351CW turbine wheel.

Please be aware the modified drop in he351cw turbos sometimes get a bad wrap for heat. When you drop blade count on the turbine and compressor it slows shaft speed and generates heat. If you are looking to tow with your truck and want a larger drop in and you're trying to DIY you need to use a 12 blade 76/67 turbine. The 76/67 10 blade will make more power but will drive worse and be hotter. The same goes for the compressor wheel, the higher the blade count the better it will drive and egts will be lower. We sell fully complete drop ins in stages 1-3 with hp ratings of over 850hp on the stage 3 and we can custom build one to suit your truck specifically. Please stop just buying what is available to you over the internet and then having bad results. Just because we don't have something listed doesn't mean we don't have it. So please just ask, we build hundreds and hundreds of custom suited turbos a year for everyday driving trucks to high horsepower trucks.

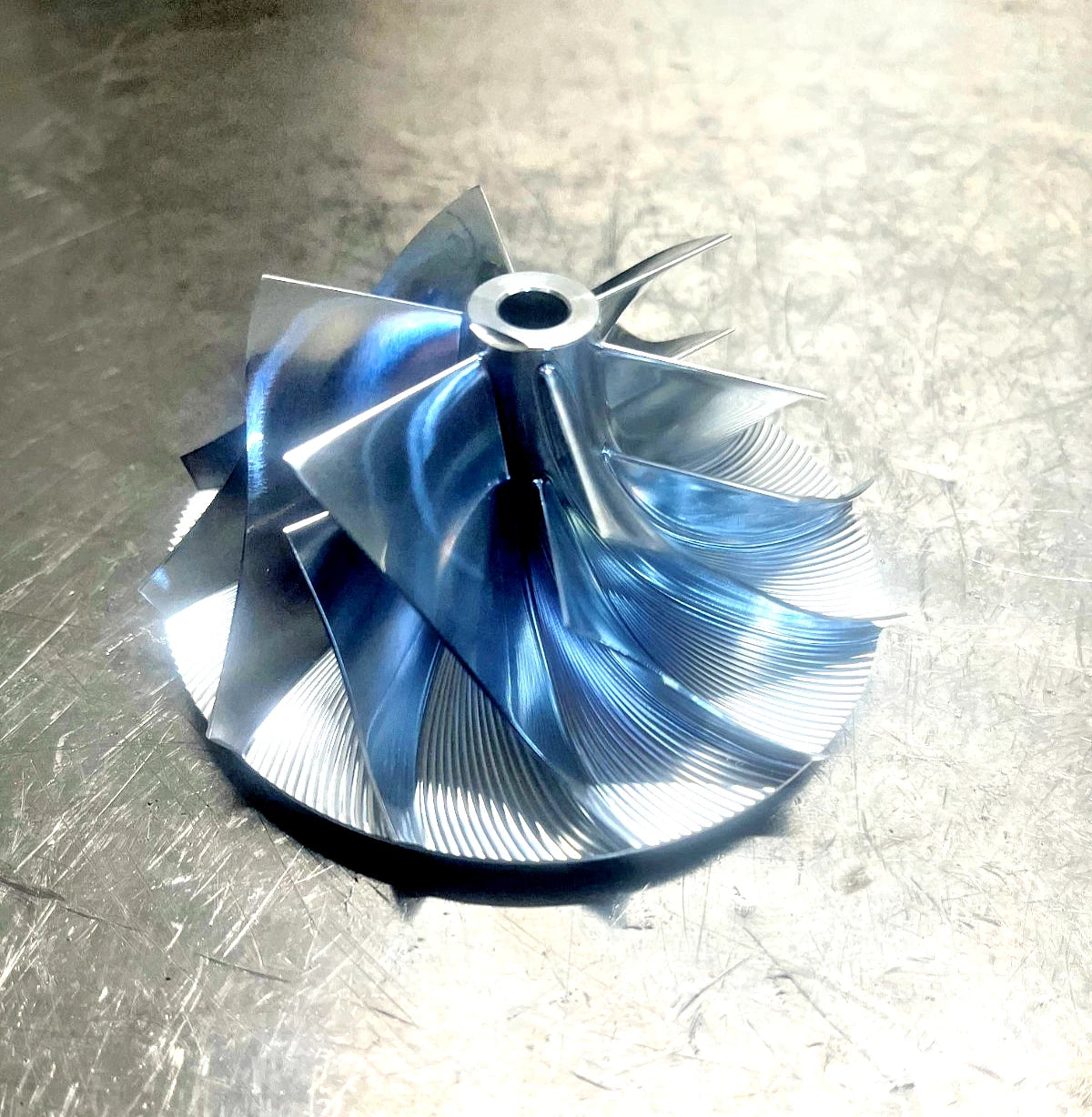

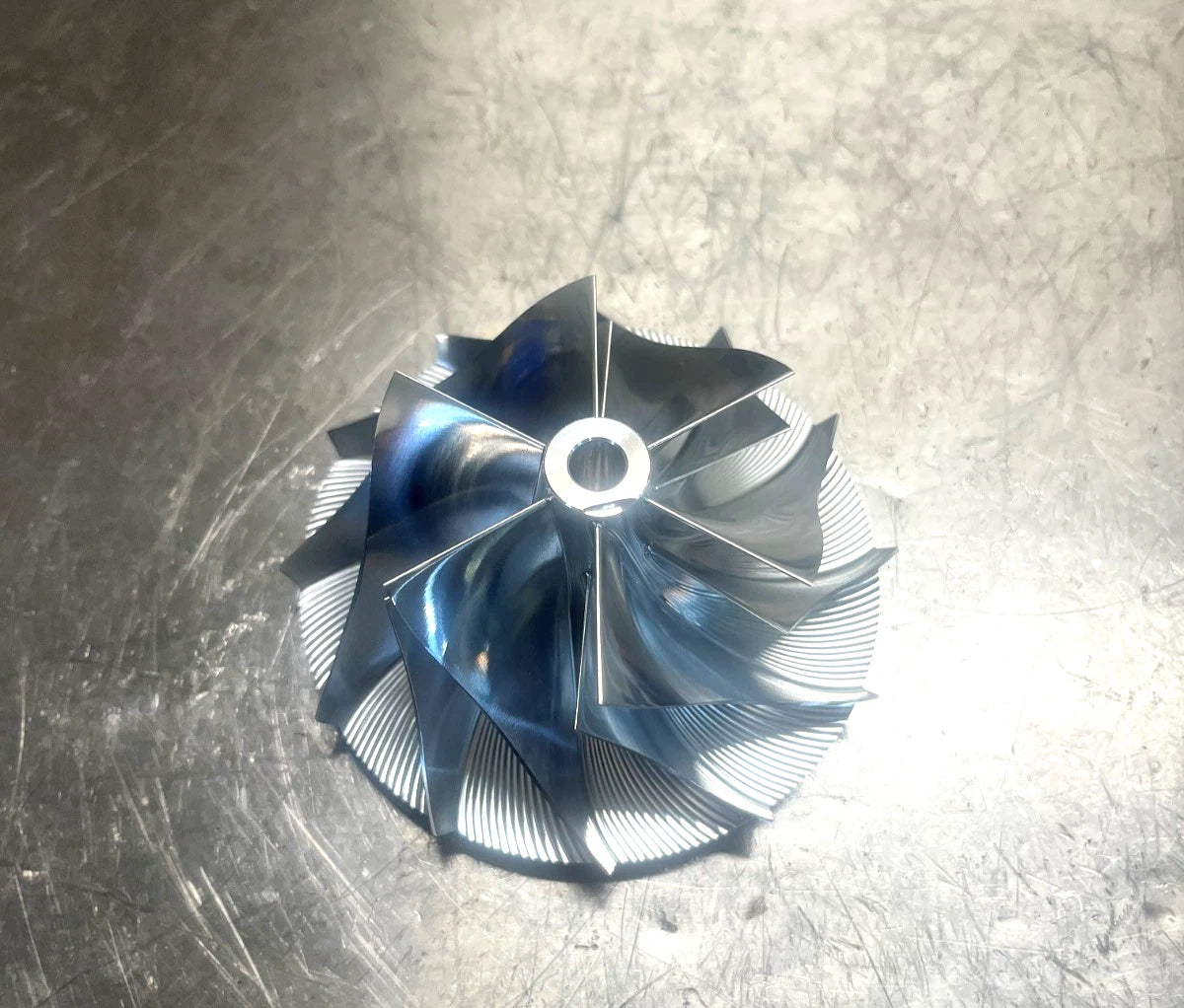

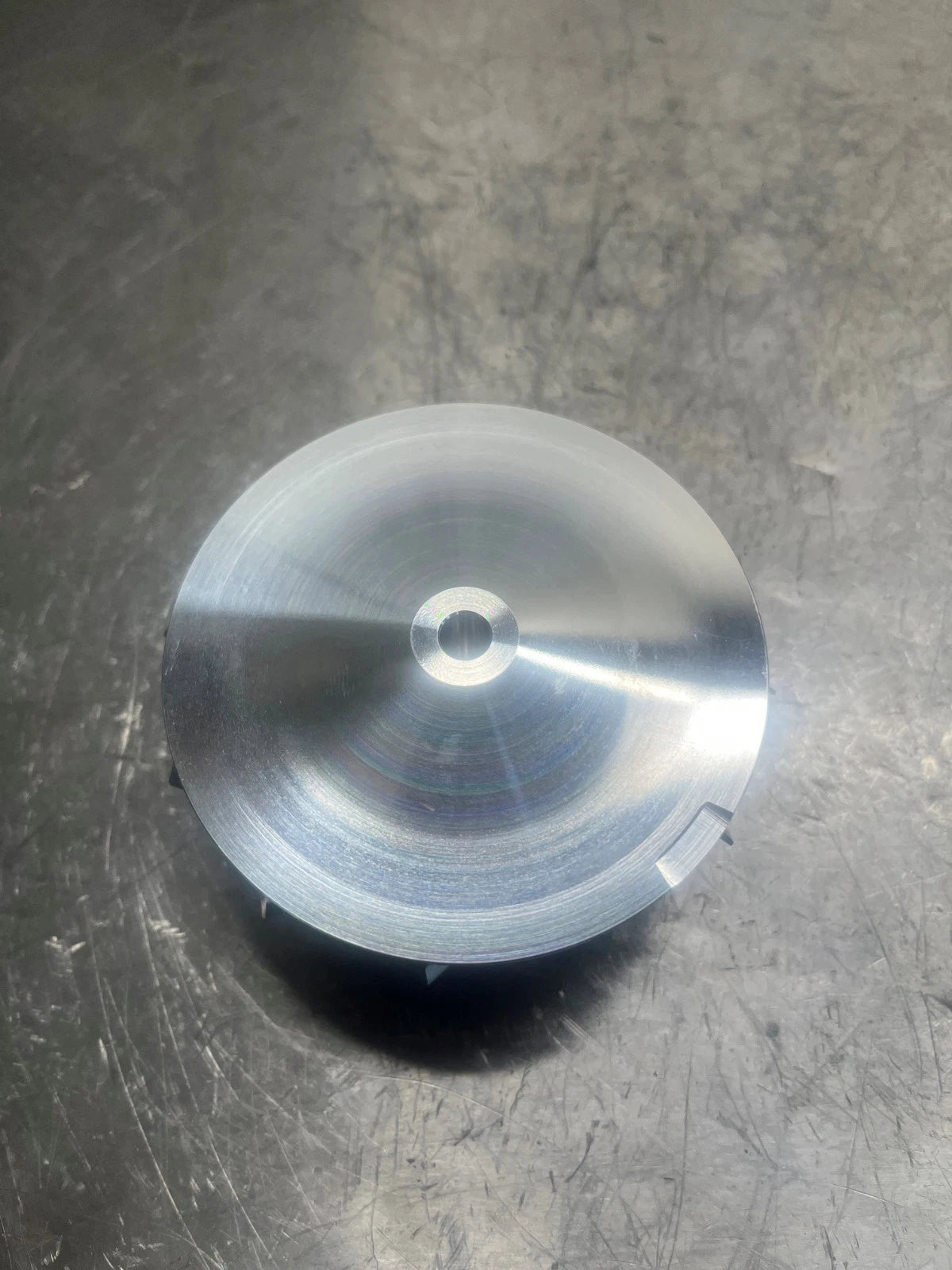

6 high + 6 low Billet Compressor Wheel

This is the highest flowing compressor wheel drop in replacement

Technical Data:

Inducer Diameter: 60mm

Exducer Diameter: 86mm

Extended Tip Diameter: 90.5mm

Blade: 6x6

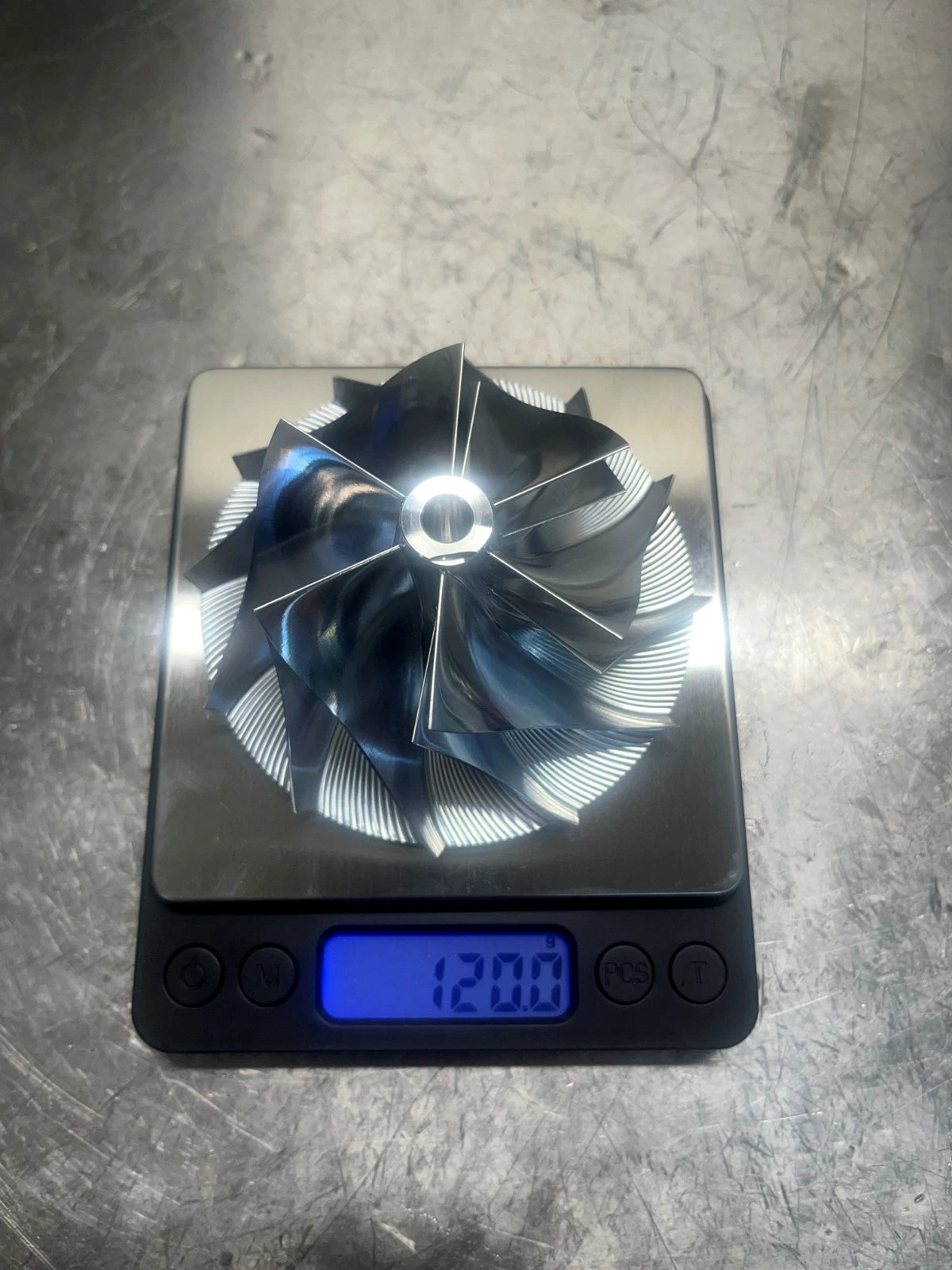

Our wheel weight 120 grams

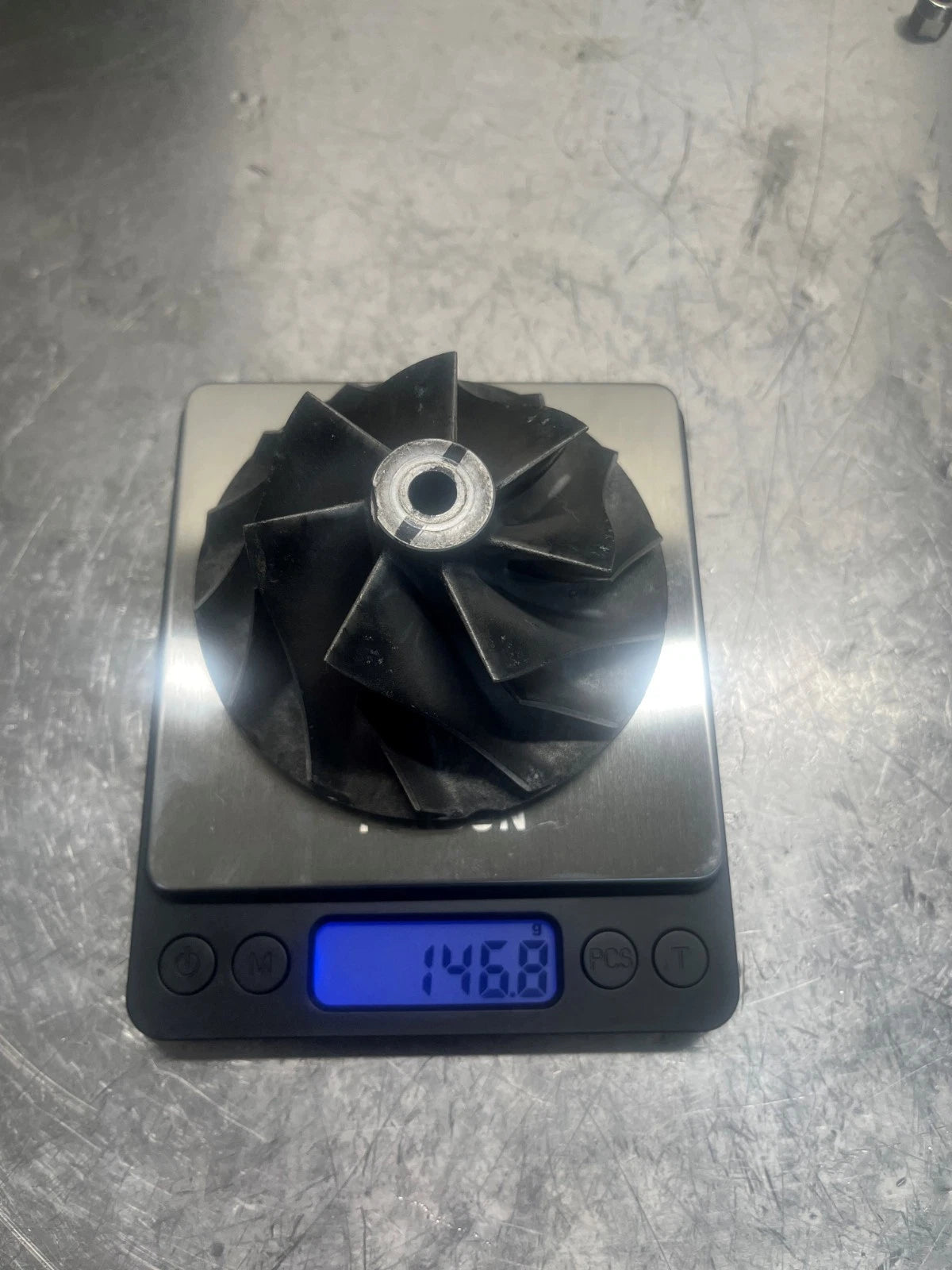

Stock wheel weight 146.8 grams

This wheel won't increase boost pressure like every other add, however it will & should drop boost pressure because of efficiency and flow. The entire reason you do an upgrade like this is to lessen the stress and wear on the turbo and make it more efficient. Example 400hp at 30lbs of boost with factory compressor wheel vs 400hp at 25lbs of boost with our wheel, same diameter size but more efficient. Generally, you will be at the same or less boost pressure with this wheel which is a good thing.

Improves Performance at Higher Boost Levels

Pre-balanced Ready to Install

These modified he351cw feature a 67mm 7x7 Billet Compressor Wheel with a High Flow Custom 67mm 10 blade Turbine Wheel. All turbo's are built from new units, the only thing that is reused from the core is the modified holset compressor housing's. These are built using the latest tech internals. New wastegate's pre set to open at 45lbs. They have done over 850+hp many time's before and are amazing upgrade's for the everyday driver that doesnt tow and wants to make big power and stay drop in. These turbo's are very loud compared to stock. So if your looking to make more power, better over all efficiency and noise this turbo is for you. These turbo are not meant to be towed with. The increase in size and low blade count slows shaft speed and generates higher egts. Please call before ordering these are build to order. 6 month Warranty. The way we build these makes them very competitive in workstock. We can build them to suit second gen swap high mount or standard with a different wastegate. Our turbos have free shipping.

Please allow 1-2 week build time. If you are in a hurry, please call before ordering to check availability. Core charge is refundable once good useable core is received.
